Small Press Brake for the Bench Press

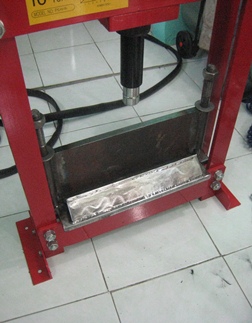

I wanted a press brake for my small bench press.
With so many kits and/or prebuilt press brakes for the small bench press available on line, I could have easily bought a kit and just performed the assembly, however I do see that as cheating a little, especially when the raw materials are so cheap, and I can choose just what size steel I use for the press brake.
So I decided to do it from scratch, and after careful online shopping around for items and ideas, I created a list of things I thought should be standard.
  • 1. It must have a 60 degree brake blade (the bit that pushes down against the die)
  • 2. It should use springs to help keep the blade retracted (and prevent damage from bashing against the die)
  • 3. It should use the heaviest steel plate I can work with
  • 4. It should have large diameter guide pins
  • 5. It should be capable of higher bend and tonnage capacity than my press (creates a safe working margin)
I went to a local steel supplier and bought some 16mm mild steel plate for the base and blade and some 50mm X 5mm angle for the die, I cut the 50mm angle to length (420 x 3 pieces).
I also bought 2 x 19mmm bolts and nuts for the pins, and some 30mm solid round bar for the blade guides. A couple of springs I had looked ok for the job.
I measured the press and decided on an appropriate length for the brake. Then I cut the base plate to suit, and the blade. (the 16mm plate came in 2 x 450mm x 150mm pieces).
I cut the bar to 2 x 125mm pieces and lathed it down to 28mm (OD) with a bore of 19.5mm (ID). I then milled down the blade to square with a 60 degree angle on the bending edge.
I cut some pieces out of the base to make it easier to get in and out of the press. I was going to use the plasma cutter but after some trials I decided it was easier and neater to use a grinder with metal cutting disks. 4 discs later (cheapo 2.50 RM types) it was finished.
I now had all the pieces ready (I had got my own kit together!). It had cost a little over 40 USD and a few hours work.
Next thing to do was to weld the guides to the blade, the pins (19mm bolts) to the base, and the 50mm angle to the base. I decided to use my TIG, that way I can control the welding process better.
I welded the guides to the base (after first making them all shiny bare metal). The TIG alowed great penetration and control, although I admit this was my first TIG experience on this welder.
Once they cooled off I used the blade as a guide to get the correct spacing and position for the pins. I pre-drilled 2 x 19mm holes for the bolts and inserted them from the bottom of the base.
I then welded the bolt heads to the base, keeping the working side (top side)of the base looking really tidy.

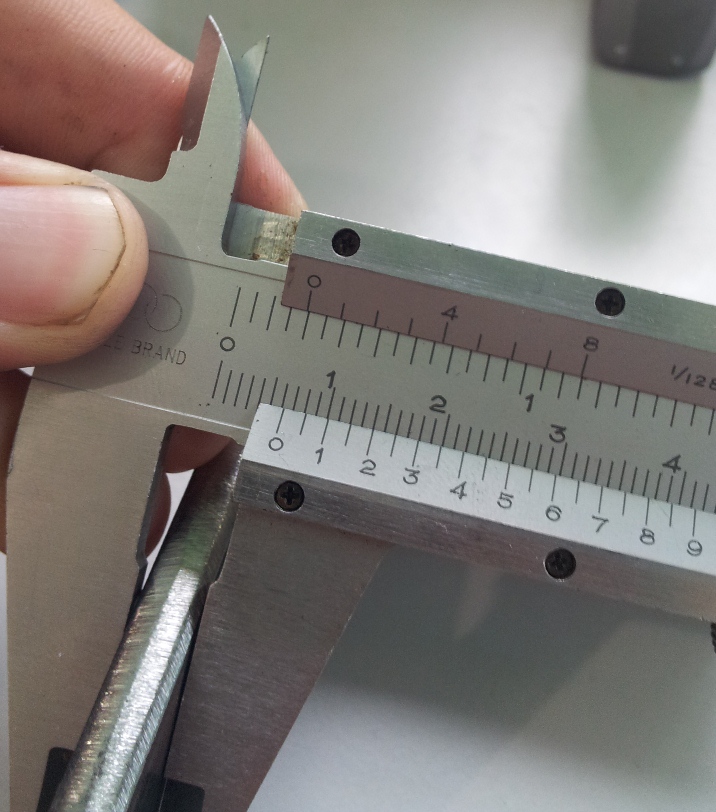

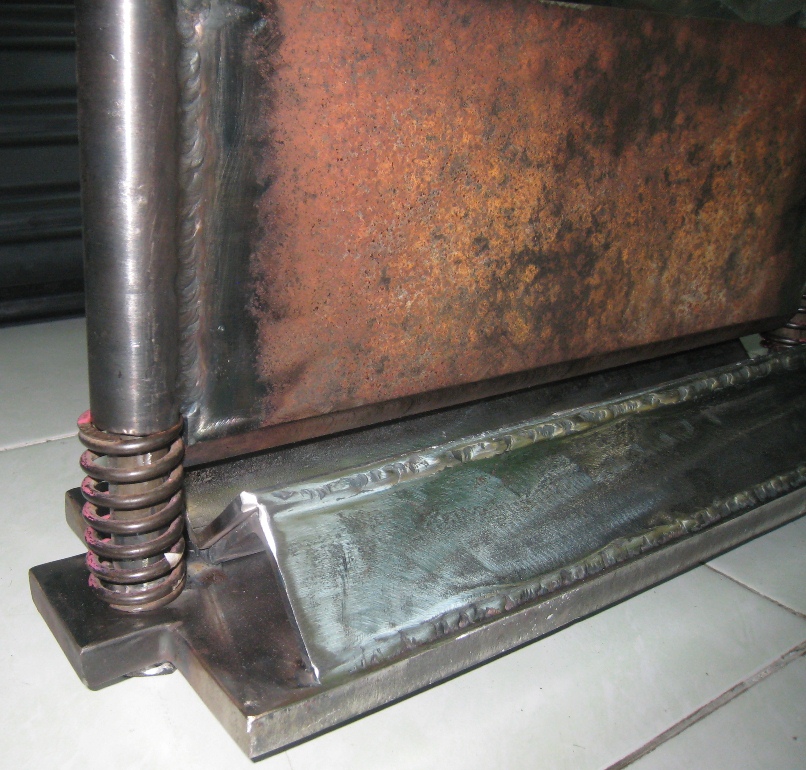

Then it was a case of welding in the dies, creating a 10mm center die thickness. I figured this was strong enough!.
I cannot stress enough how the TIG was much easier to work with than the MIG in all the welding, the TIG delivers so much more control. See my weldng tips n tricks for more info on this.

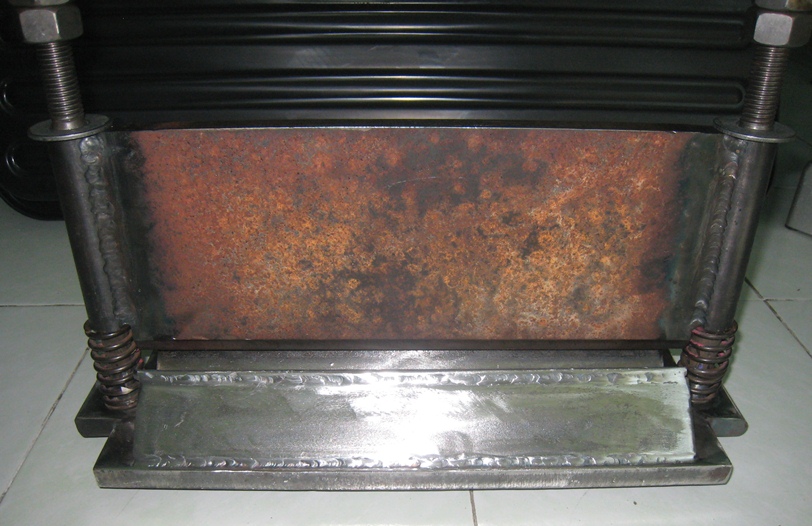

So it is finished, painted in the poison green undercoat and blue topcoat. A 2 pak may be better but its just to minimise the rust..
I tested it on 3mm plate (150mm wide), which was what I wanted to bend before I started all this. It bent like soft butter not even registering on my press tonnage meter.
I also tested it on some 6mm flat bar, and it bent that like butter. Hardly even registered on the meter. Using the 50mm angle created a large space between the "V" of the die, which translates to less required pressure to bend a given thickness.
I estimate that 6mm X 100mmm will be ok, I am not sure I will ever need to do that!
Here is some video of bending 6mm X 32 mm Flat Bar!
